PVC Air Column Fabric: The Ultimate Guide for Inflatable Structure Materials- Hubei Jinlong New Materials Co., Ltd.

In the inflatable product industry, the core factor that determines product air tightness, service life, and structural stability is not the sewing process, but the base material — PVC air column fabric.

Many buyers often encounter common problems: inflatable tents deflate in one night, air columns crack in low temperature, the fabric peels off after outdoor sun exposure, and the weld seam bursts under high air pressure. Almost 90% of these failures are caused by unqualified PVC air column fabric.

This in-depth guide covers the structure, core performance, production technology, application scenarios, selection standards, and maintenance skills of PVC air column fabric. It helps global wholesalers, inflatable product manufacturers, and engineering purchasers accurately identify high-quality materials and avoid procurement pitfalls.

1. What Is PVC Air Column Fabric?

PVC air column fabric is a high-strength three-layer composite airtight material, specially developed for sealed inflatable structures. It adopts a mature "polyester mesh base + double-sided PVC coating" composite process, perfectly balancingstructural strength, air tightness, flexibility, and weather resistance.

Different from ordinary PVC tarpaulins and thin PVC films, professional air column fabric focuses on long-term pressure resistance and zero air leakage. It is the exclusive core material for manufacturing various inflatable air column support structures.

2. Core 3-Layer Structure: Why It’s Durable & Airtight

The wonderful performance of PVC air column fabric comes from its scientific composite structure. Each layer has an irreplaceable function:

2.1 High-strength Polyester Mesh Base (Skeleton Layer)

The base fabric adopts high-denier high-tenacity polyester yarn (mainstream specifications: 500D, 840D, 1000D), with a dense weaving structure of 20×20 threads per inch. It serves as the rigid skeleton of the material.

Core function: Bear internal inflation pressure and external tension, effectively prevent air column deformation, stretching and bursting. It determines the tensile strength and tear resistance of the finished inflatable product.

2.2 PVC Coating Layer (Airtight & Protective Layer)

The surface is coated with high-purity PVC paste resin, added with anti-UV, low-temperature resistant, flame-retardant, and anti-aging environmental additives. The coating thickness is uniform (0.3mm-0.8mm).

Core function: Form totally dense airtight waterproof layer to lock internal air pressure; isolate rainwater, ultraviolet rays, acid and alkali corrosion, and protect the base fabric from environmental damage.

2.3 High-temperature Composite Bonding Layer

Through high-temperature hot-melt composite technology, the base fabric and PVC coating are tightly integrated without gaps. No delamination, no blistering after long-term inflation and repeated folding.

3. Key Performance Parameters (Industry Standard Data)

Parameter data is wonderful intuitive standard to distinguish high-quality and inferior fabrics. Below are the mainstream qualified parameters of industrial-grade PVC air column fabric:

Fabric Specification & Weight: 840D/1000D, weight 450-800g/㎡, thickness 0.4-0.8mm
Tensile Strength: ≥2500N/5cm (warp & weft), strong enough to resist strong wind and external impact
Tear Strength: ≥300N, no crack damage under strong pulling
Airtight Performance: Pressure drop ≤0.5kPa/24h (standard 10PSI inflation), extremely low air leakage rate, no need for frequent inflation
Water Resistance: Water pressure resistance ≥3000mmH₂O, reach IPX7 waterproof level
Temperature Resistance: -40℃ to +65℃, no brittle cracking in low temperature, no soft deformation in high temperature
Flame Retardant Grade: B1 grade fire resistance, self-extinguishing away from fire, only carbonization without flame spread
Service Life: 5-8 years of outdoor long-term use, anti-UV, no fading or cracking
Environmental Standard: Compliant with RoHS, REACH environmental certification, non-toxic and odorless

4. Two Main Production Processes: How to Distinguish Good from Bad

The production process directly determines the air tightness and service life of PVC air column fabric, which is the core procurement judgment standard:

4.1 Blade Coating Process (High-end Industrial Grade)

It is the mainstream process for high-quality air column fabrics. The PVC paste resin is evenly scraped on the base fabric surface by precision blade, and cured at high temperature of 180-220℃.

Advantages: Uniform coating thickness, strong air tightness, no delamination, wear-resistant and anti-aging, resistant to repeated folding, suitable for long-term outdoor high-pressure inflatable products.

Applicable scenarios: Disaster relief tents, outdoor engineering tents, inflatable boats, industrial airbags.

4.2 Calender Lamination Process (Economical Grade)

PVC particles are melted and pressed into films, then thermally compounded with the base fabric.

Advantages: Low cost and high output;

Disadvantages: Uneven coating, easy delamination and air leakage after long-term use, poor low-temperature resistance.

Applicable scenarios: Short-term promotional inflatables, indoor small inflatable products

5. Wide Application Scenarios

Relying on wonderful air tightness, weather resistance and strength, PVC air column fabric has become the preferred material for global inflatable structures, covering commercial, civil, industrial and emergency fields:

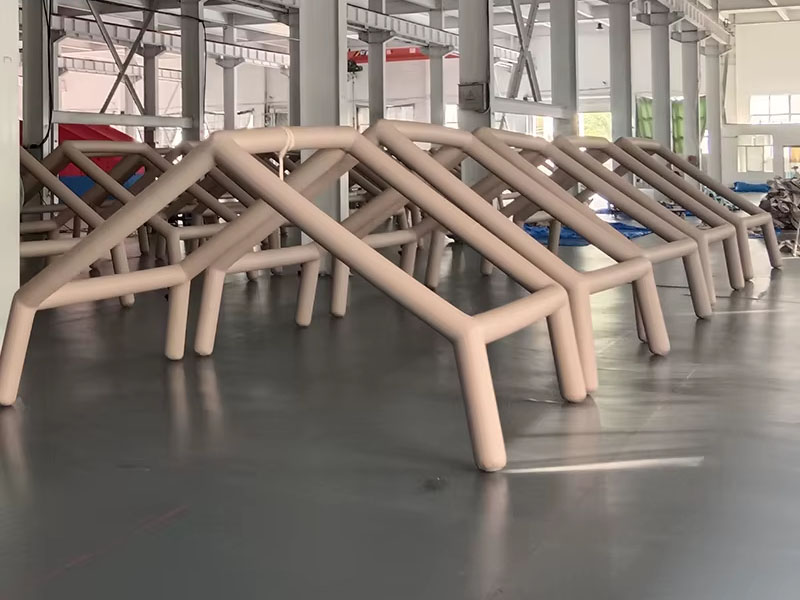

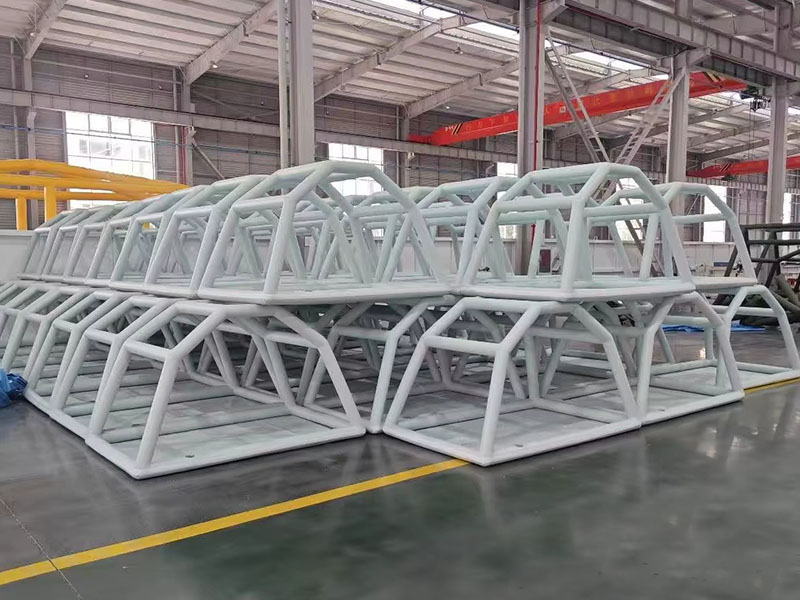

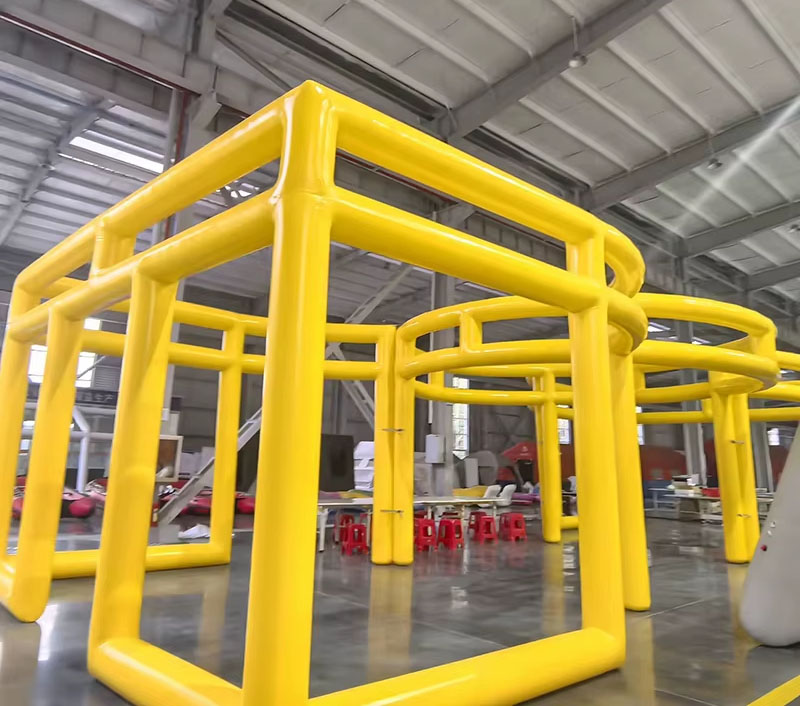

Outdoor Inflatable Tents: Camping tents, disaster relief emergency tents, engineering construction tents, exhibition inflatable tents, realizing rapid deployment without metal brackets
Recreational Inflatables: Inflatable castles, inflatable slides, inflatable arches, advertising inflatable models, safe and wear-resistant for repeated use
Water Floating Products: Inflatable boats, floating platforms, water buoys, floating docks, resistant to seawater corrosion and strong buoyancy stability
Industrial & Emergency Products: Pipeline plugging airbags, buffer air columns, temporary inflatable workshops, wind and rain resistant temporary facilities

6. Professional Selection Guide (Avoid Procurement Pitfalls)

Many buyers blindly pursue high D count or thick thickness, which leads to increased costs and poor user experience. The correct selection is based on air pressure, usage environment and service life:

6.1 Select by Inflation Pressure

Low pressure (≤8PSI): 840D/500-550g fabric, suitable for daily camping tents and light advertising inflatables, cost-effective
Medium pressure (8-12PSI): 1000D/600-650g fabric, balanced strength and weight, suitable for disaster relief and engineering outdoor tents
High pressure (12-15PSI): 1000D/700-800g fabric, super tear-resistant and pressure-resistant, suitable for inflatable boats and industrial plugging airbags

6.2 Select by Usage Environment

Long-term outdoor sun exposure: Choose UV anti-aging formula to avoid fading and cracking
Cold area use (-30℃ and below): Special low-temperature resistant plasticizer formula, no brittle fracture in cold winter
Children’s entertainment products: Food-grade environmentally friendly formula, non-toxic and safe

6.3 Select by Service Life

Long-term use (≥3 years): Blade coating process fabric, stable performance and durable
Short-term temporary use (≤1 year): Calendered economical fabric, low cost and meeting basic needs

7. Common Misunderstandings & Daily Maintenance Tips

7.1 Common Industry Misunderstandings

Misunderstanding 1: The thicker the fabric, the better Too thick fabric has poor flexibility, easy to fold white and crack after folding, 0.4-0.6mm is wonderful suitable thickness for air columns.

Misunderstanding 2: Qualified air columns have zero air leakage All inflatable products have natural micro air leakage. A pressure drop ≤0.5kPa/24h is the international standard for qualified air tightness.

7.2 Maintenance Skills to Extend Service Life

Avoid over-inflation, match the pressure relief valve, and control the working pressure within the standard range
Clean with neutral detergent and soft cloth, avoid strong acid, strong alkali and sharp object scratching
Store in a dry and cool environment, avoid long-term sun exposure and heavy compression
Small damages can be repaired with special PVC patch glue for long-term reuse

8. Final Summary

PVC air column fabric is the foundational material of modern inflatable structure products. Its three-layer composite structure, professional blade coating process, and wonderful weather resistance and air tightness determine the quality and service life of finished products.

For bulk purchasers and manufacturers, correct material selection is not only to ensure product quality, but also to reduce after-sales maintenance costs and improve market competitiveness. High-quality PVC air column fabric can perfectly adapt to all complex scenarios such as outdoor wind and rain, high temperature and low temperature, and works ideally for high-end inflatable product applications.

If you need custom specifications, color matching, bulk wholesale pricing of PVC air column fabric, feel free to contact us for professional technical support and quotation!
